GTIN: 00698833054491

Part Number: 45-475-216

Product Weight: 15.3 lbs

Shipping Weight: 18.5 lbs

Shipping Dimensions: 18.5" x 11.5" x 6.5" (47 x 29 x 16 cm)

Description: HX Desk Monitor Arm

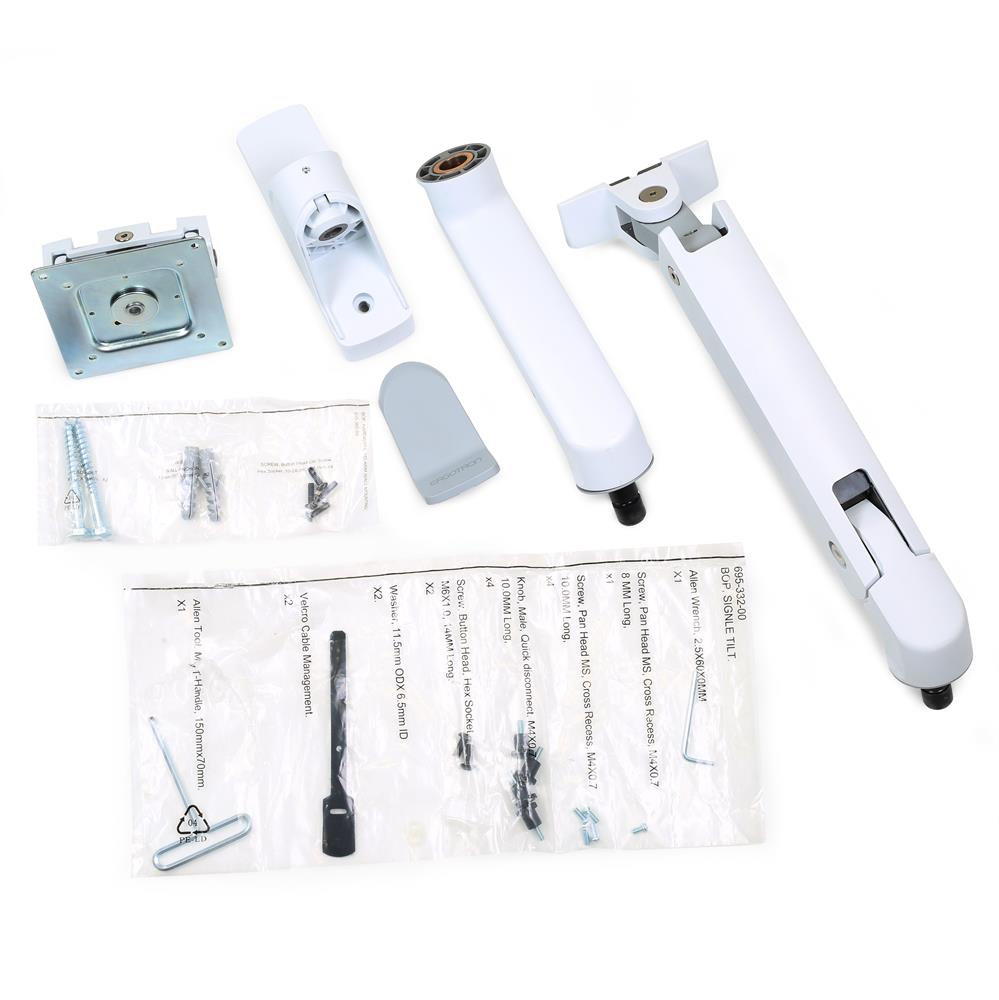

Includes arm, extension, monitor pivot, desk clamp, grommet mount, mounting hardware

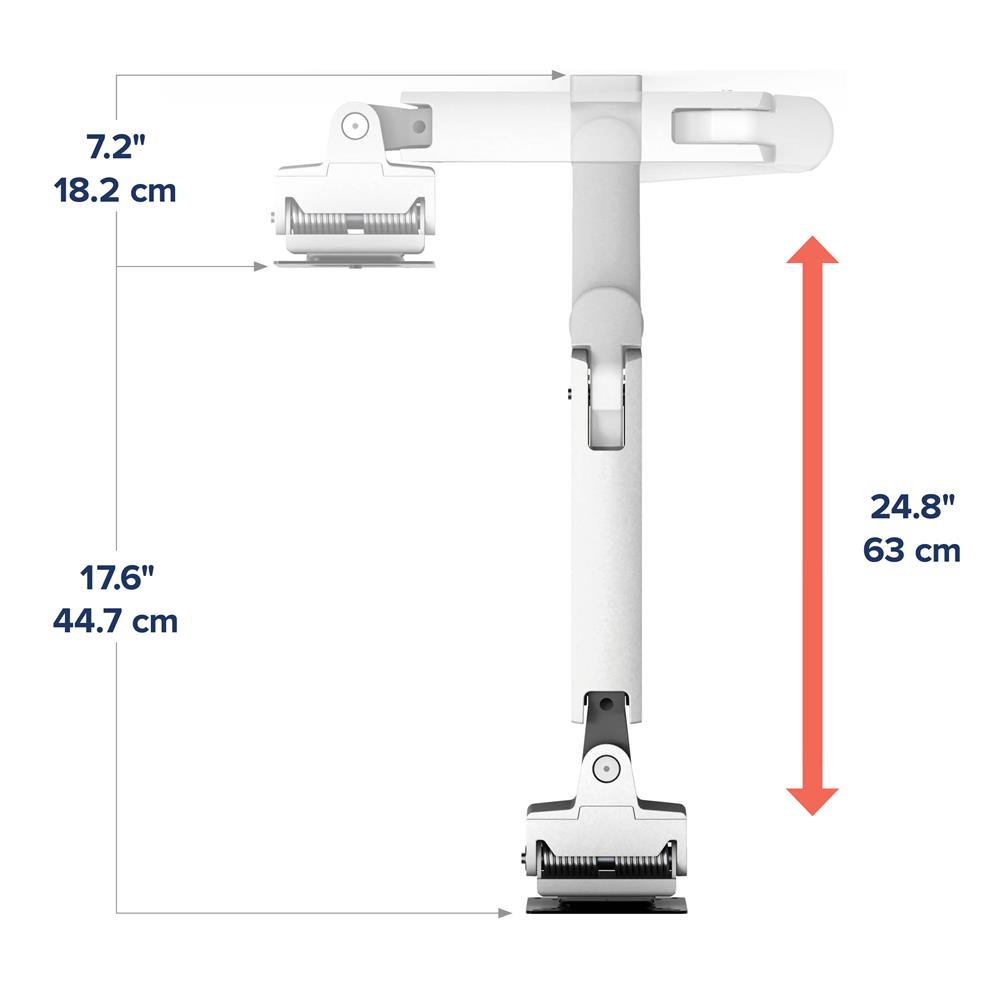

Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas

Portrait/landscape rotation with lockout

Streamlined cable management routes cables under arm and within extension

Desk clamp attaches to surface edge 0.4" to 2.6" (1 to 6.6 cm) thick

Grommet mount attaches through surface holes

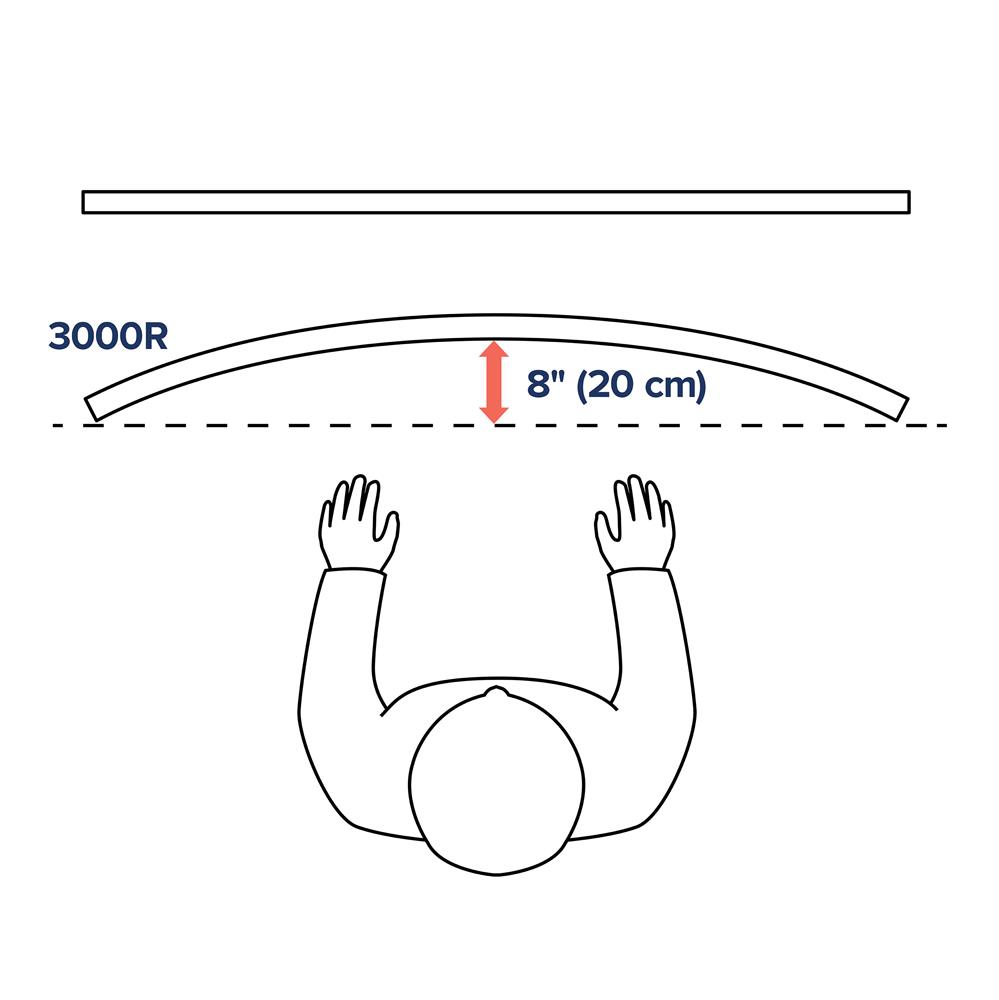

§ Weight Capacity: 20–42 lbs (9.1–19.1 kg). Note: Display depth greater than 8" (20 cm) may affect the arm’s weight capacity. For a curved monitor, consider the arc’s depth to determine compatibility. For a display weighing 28–42 lbs (12.7–19.1 kg) with a depth of 6"–12" (15–30 cm), the accessory HX Heavy-Duty Tilt Pivot (98-540-216) is recommended

* Monitor can be rotated 360° at connection point of arm and extension; rotation is restricted to 180° at connection point of extension and base

‡ Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm), MIS-E (hole pattern = 200 x 100 mm), MIS-F (hole pattern = 200 x 200 mm ONLY). Optional VESA Bracket Adaptor Kit (97-759) can be ordered separately for MIS-F interface with hole pattern of 400 x 200 mm, 400 x 300 mm or 400 x 400 mm

† Tilt Range: 70° backward, 5° forward

This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)

Warranty: Ten years
