GTIN: 00698833091588

Part Number: 45-682-292

Product Weight: 8.3 lbs

Shipping Weight: 11.3 lbs

Shipping Dimensions: 16.3" x 13.8" x 6.5" (41.5 x 35 x 16.5 cm)

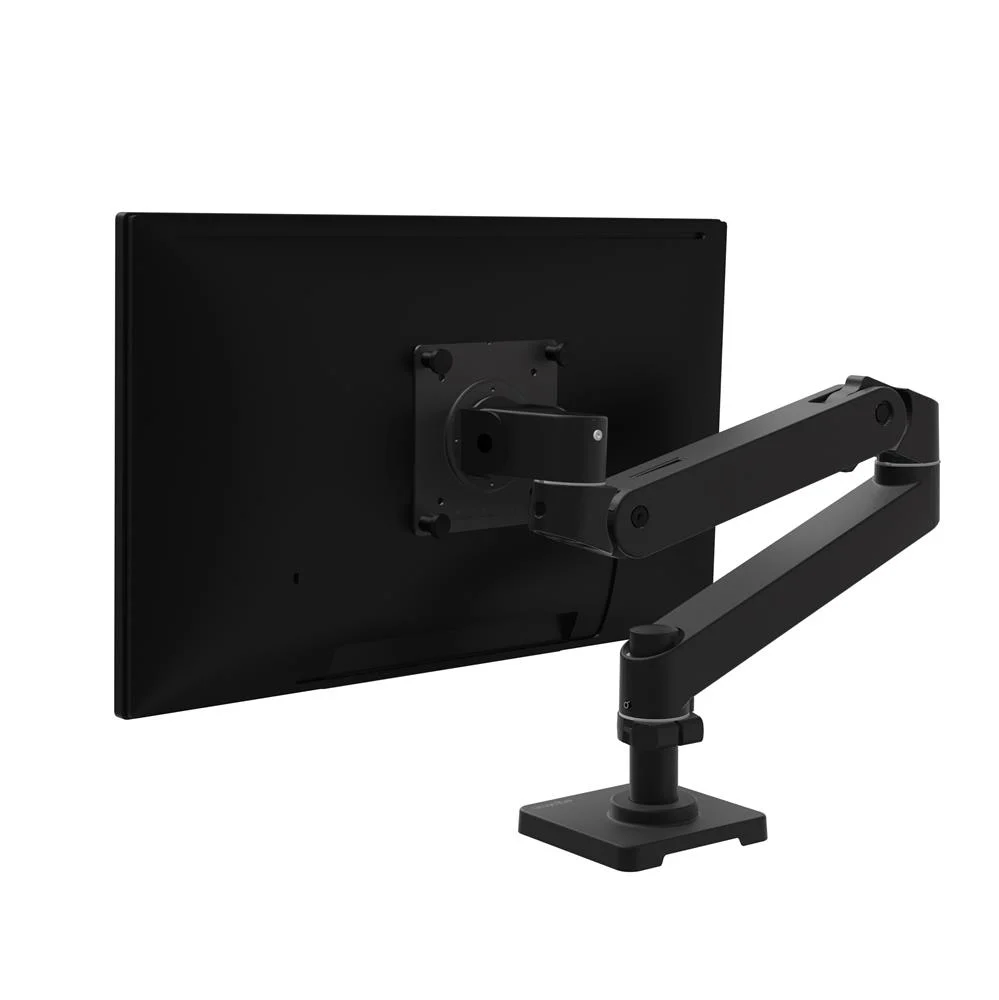

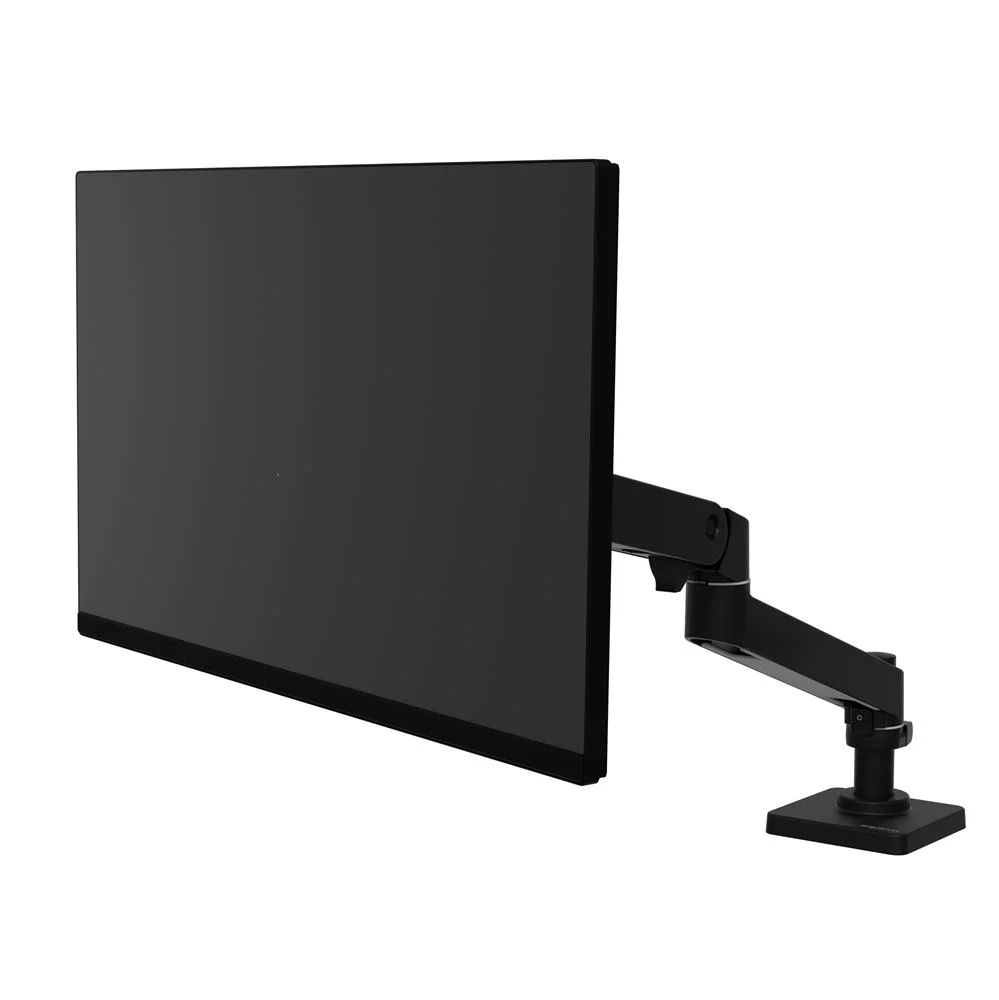

Description: LX Pro Desk Mount Single Monitor Arm

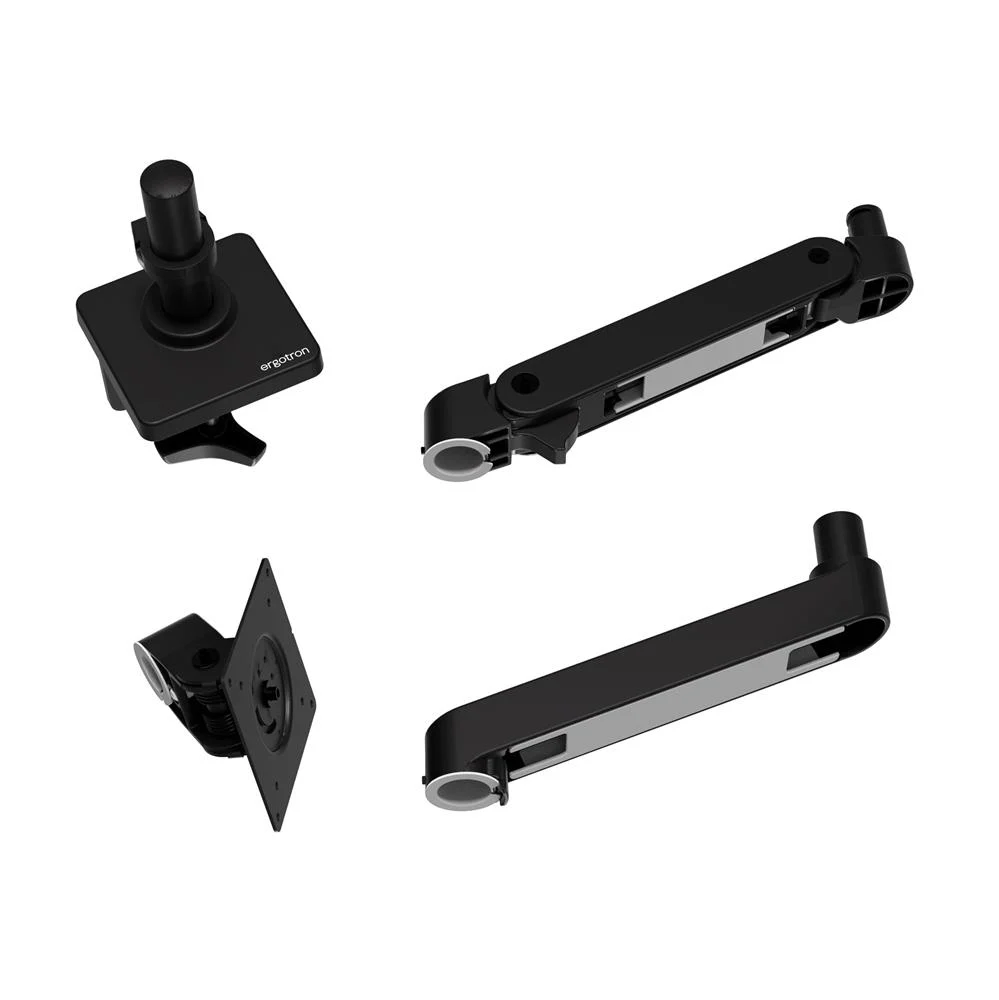

Includes arm, extension, monitor pivot, 2-piece desk clamp, standard base, 5" pole, pole collar, attachment hardware

A tension-level indicator provides a visual reference when counterbalancing an arm with its device; when installing multiple arms, note the first arm’s setting for quicker adjustment

Built-in rotation-stop on the extension can be engaged to limit side-to-side motion to deter impacts with wall

Can be configured to hold a laptop instead of a display; also order the accessory Laptop Tray (50-193-200)

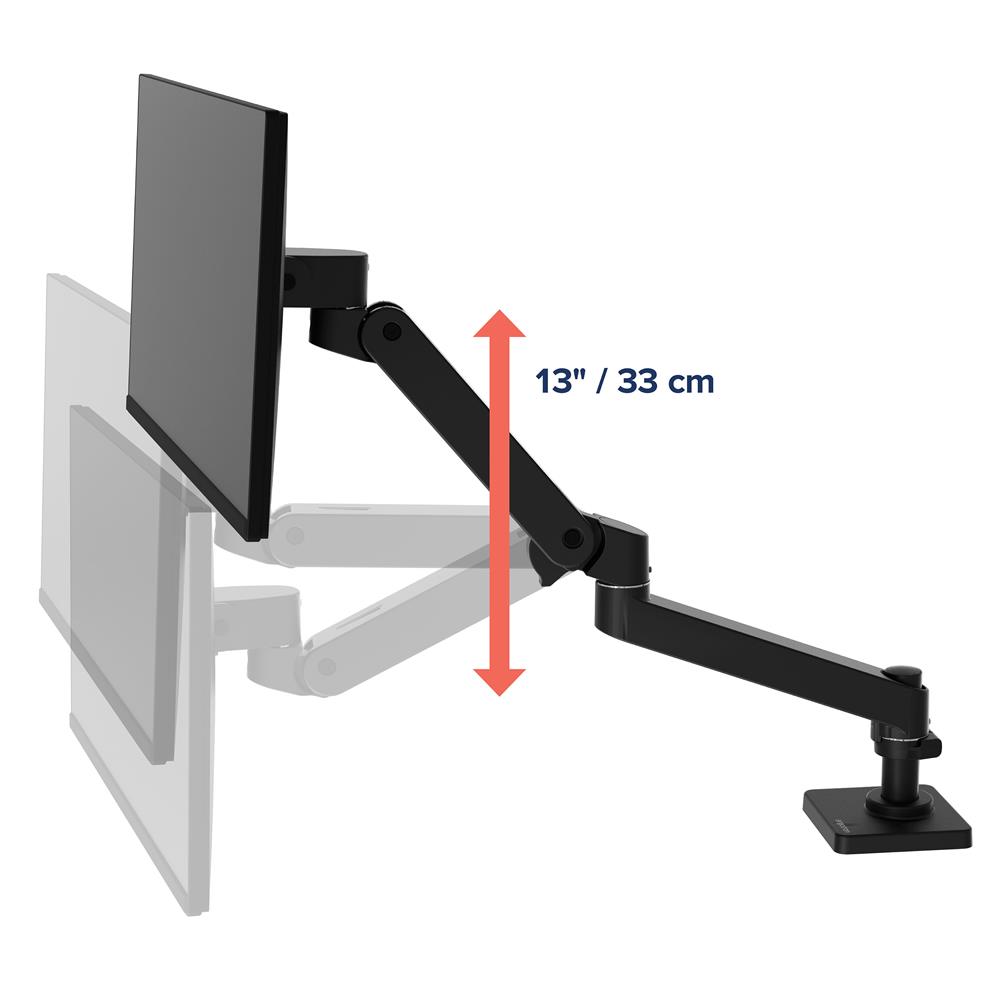

Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment

Aluminum construction offers greater durability and enhanced aesthetics

† LCD screen size is approximate. This size may be exceeded if display does not surpass weight capacity

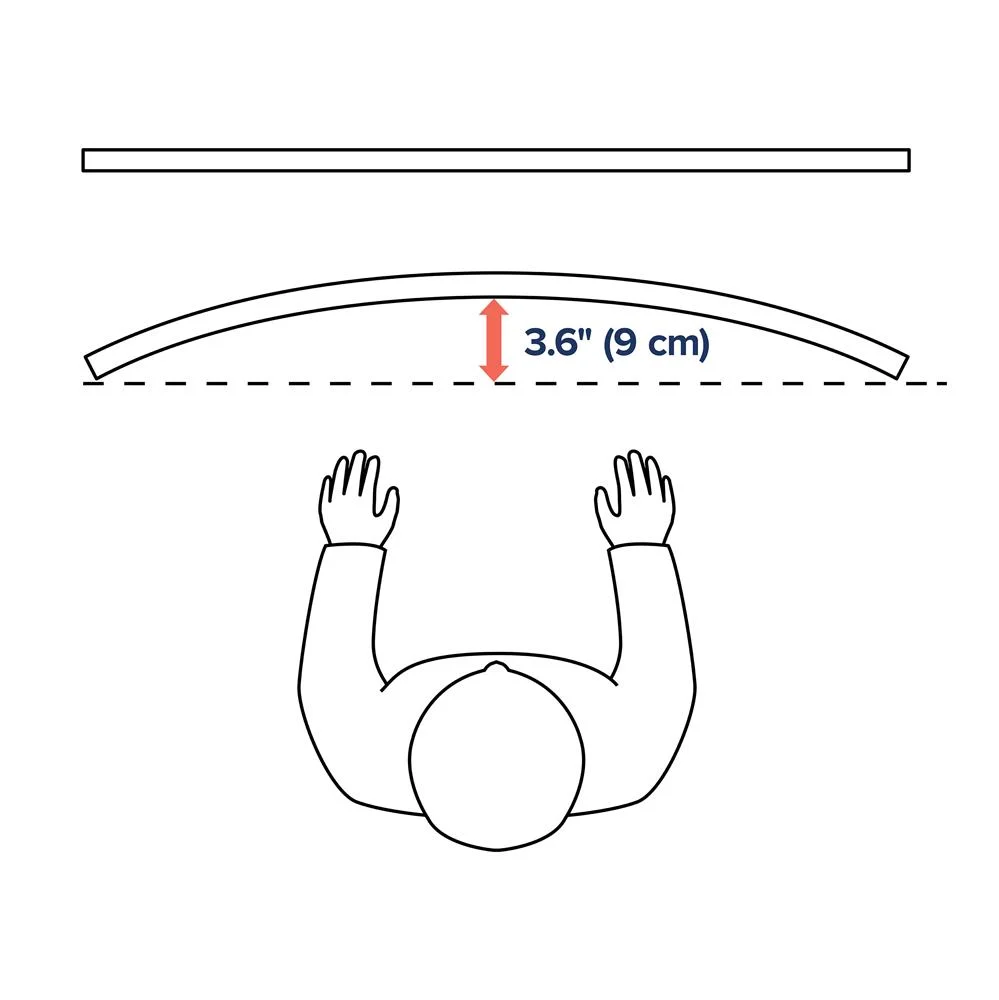

* Weight Capacity: 4 to 22 lbs (1.8 to 10 kg). Display depth greater than 3.6" (9 cm) may affect weight capacity

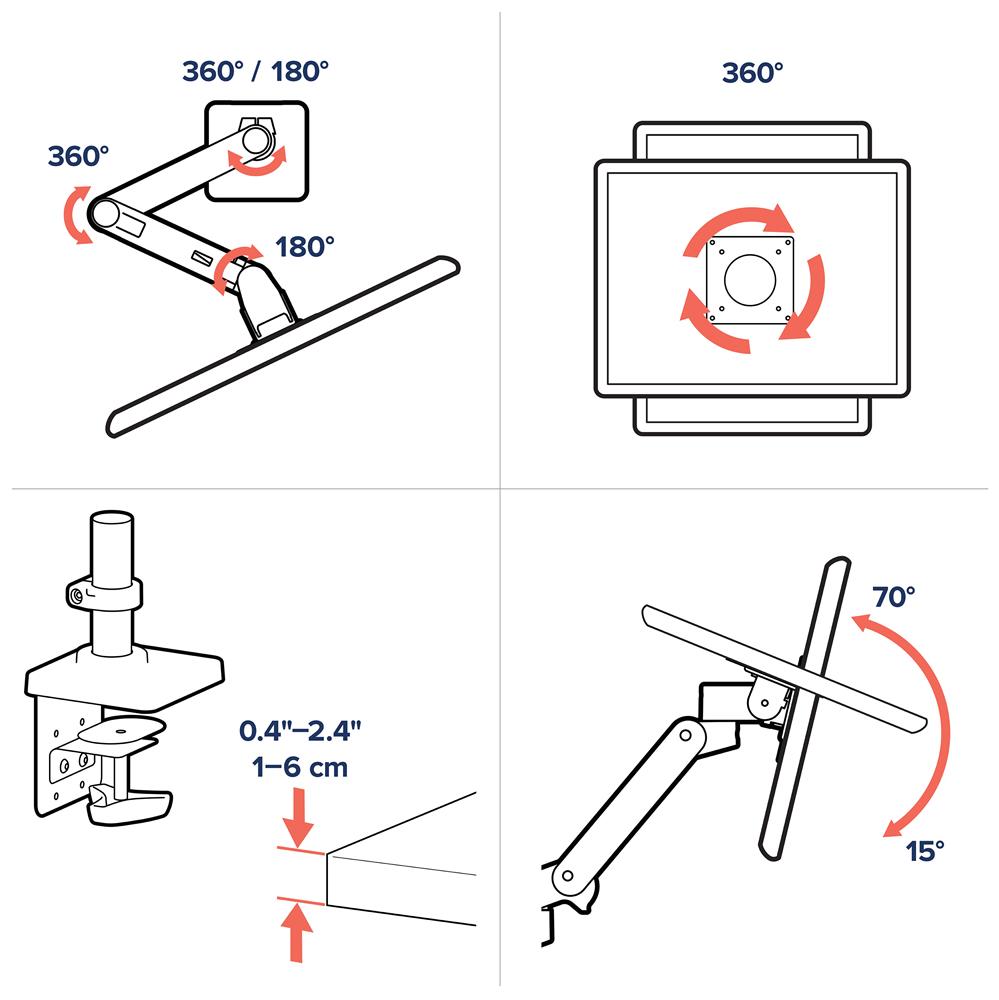

‡ Tilt Range: 70° backward, 15° forward

§ Overall side-to-side panning motion is 360°, with 3 turning points at base/extension (360°), extension/arm (360°), and arm/pivot (180°). Motion at the base/extension point can be restricted to 180° by engaging the built-in rotation stop

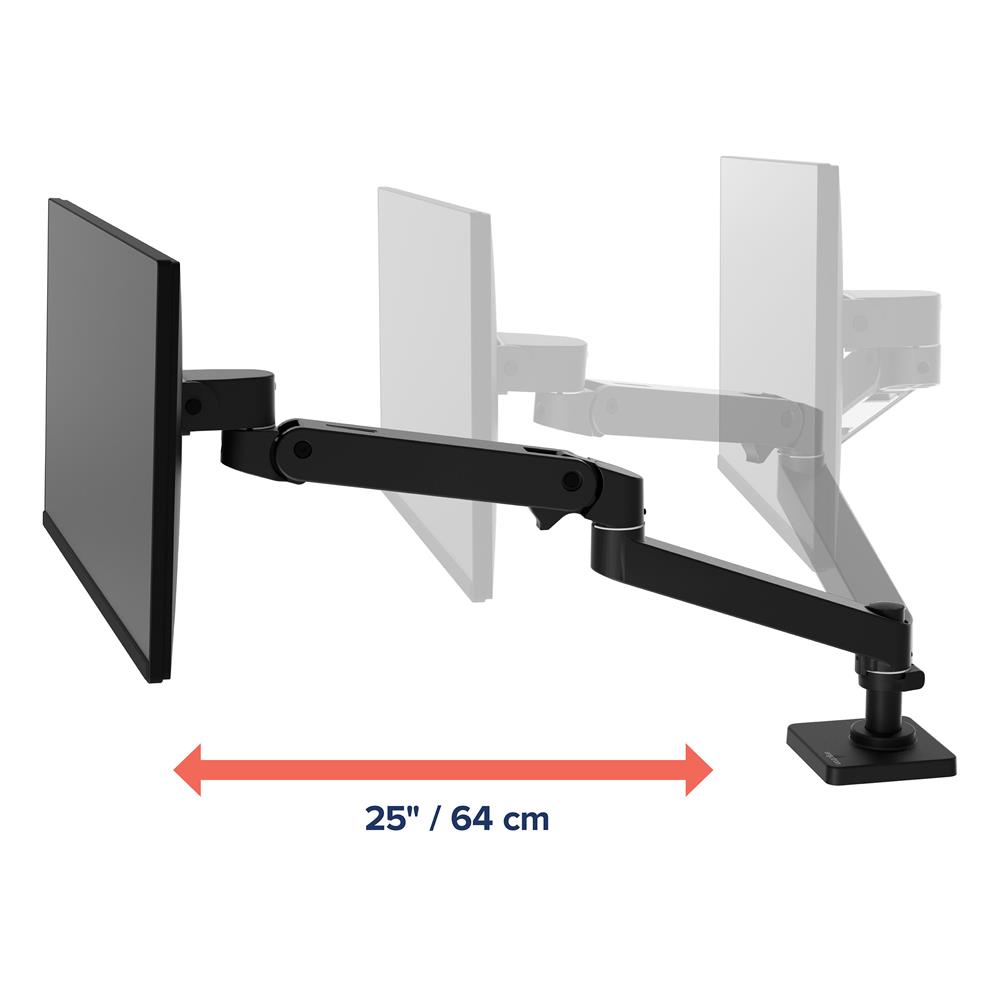

Extension Range: ≤ 25" (64 cm)

Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Desk clamp attaches to surface edge 0.4" to 2.4" (10 to 60 mm) thick

Warranty: Ten years
