GTIN: 00698833075700

Part Number: 45-509-224

Product Weight: 19.4 lbs

Shipping Weight: 23.8 lbs

Shipping Dimensions: 29.9" x 16.1" x 6.5" (76 x 41 x 17 cm)

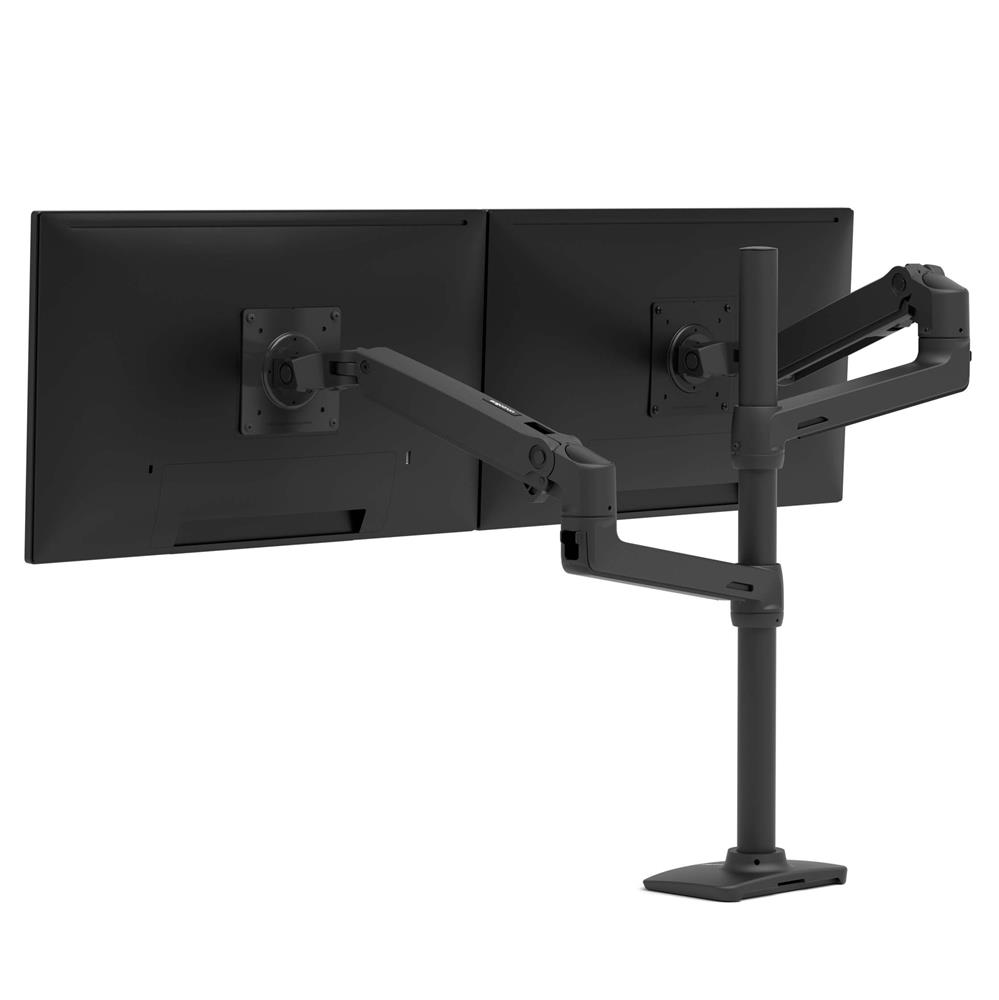

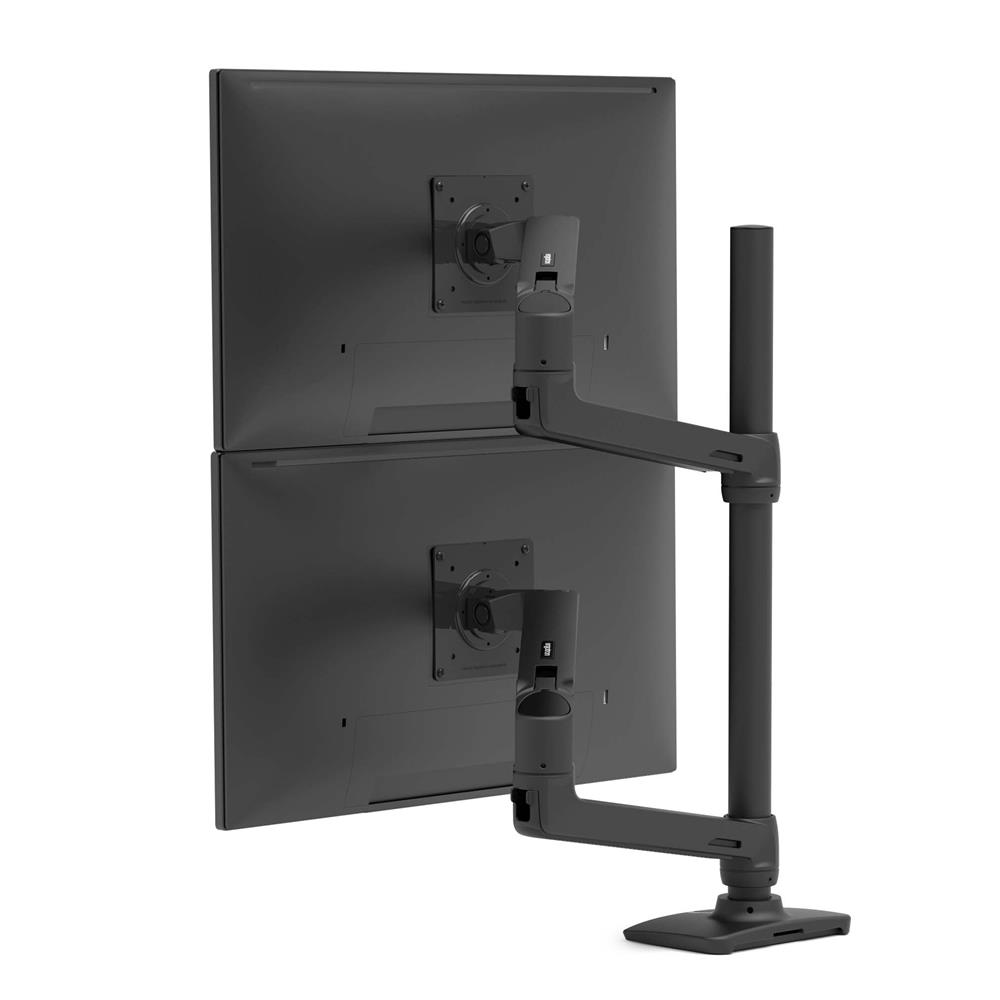

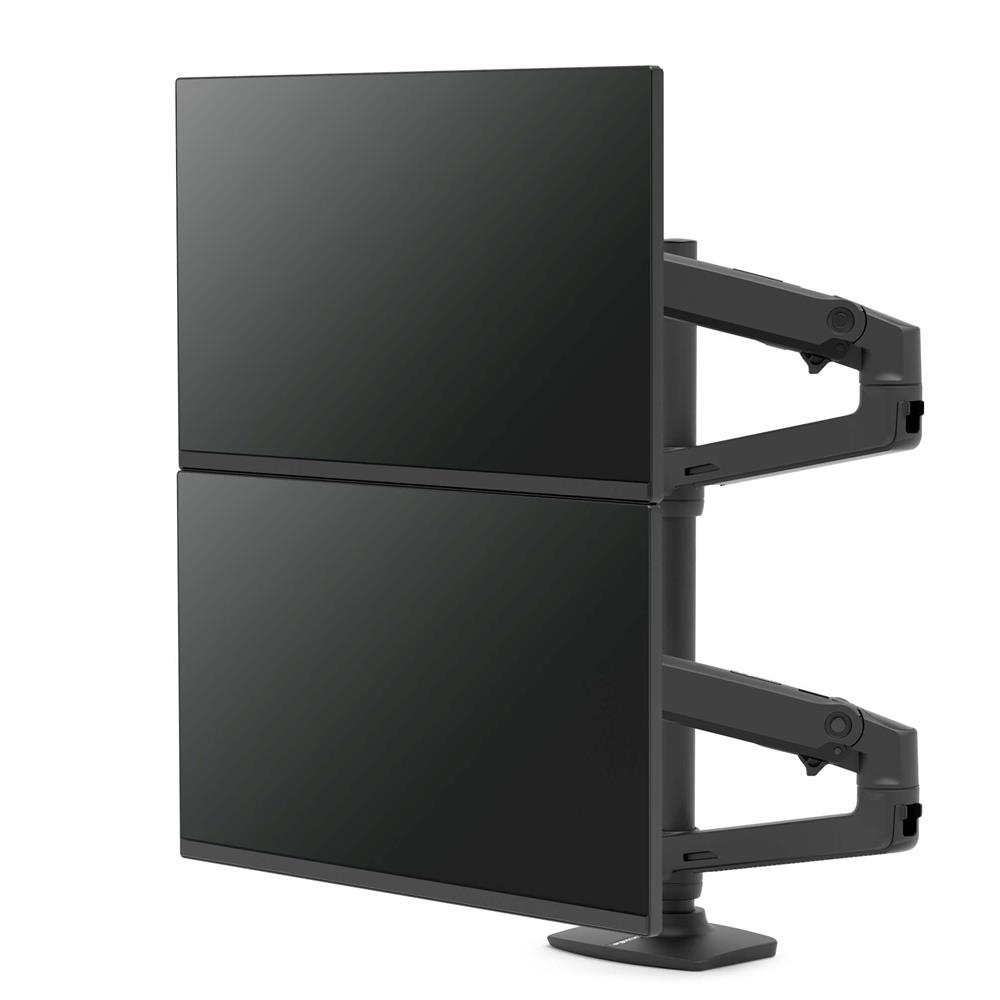

Description: LX Dual Stacking Arm, Tall Pole

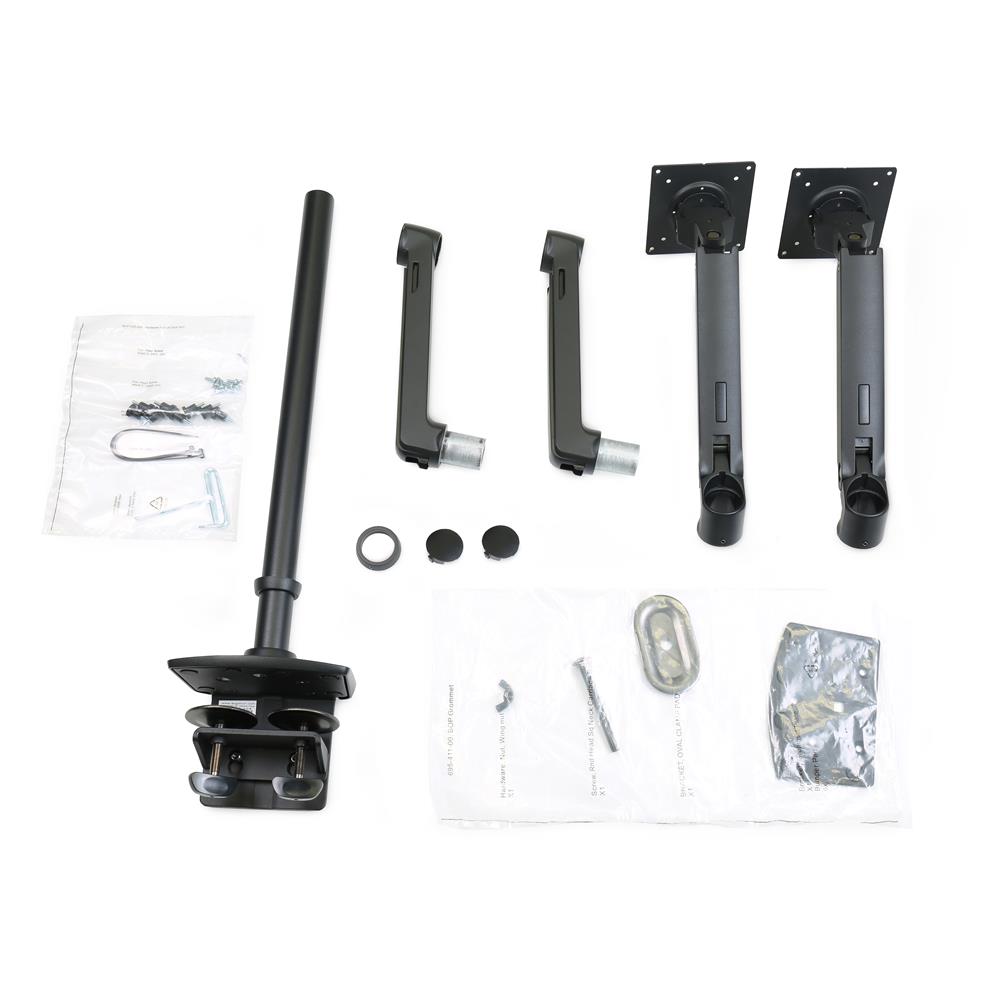

Includes two LX arms and extensions, 23" pole, heavy-duty two-piece desk clamp base with dual screws, two pole collars, two caps, grommet mount plate and hardware, monitor mounting hardware

Can be configured to hold a laptop instead of an LCD display; also order the Notebook Tray accessory (50-193-200)

Aluminum and steel construction offers greater durability

New clamp and grommet mount base ensures greater stability of display and arm

† To facilitate stacking of monitors, maximum outside height of display should be no more than 21" (53 cm). To align monitors side by side, maximum outside width should be no more than 40" (102 cm). Most monitors with screen sizes of 40" or less fit within this specification

Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Desk clamp attaches to surface edge up to 2.6" (66 mm) thick

Grommet mount attaches through hole 0.31" to 2" (8–50 mm) wide and up to 3" (76 mm) thick

* Weight Capacity:two arms: 7–22 lbs (3.2–10 kg) each;three arms: 7–14.6 lbs (3.2–6.6 kg) each;four arms: 7–11 lbs (3.2–5 kg) each. Monitor depth greater than 3.5" (8.9 cm) may diminish capacity

This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)

Warranty: Ten years
