Product Details
Product Parameters

- GTIN: 00698833085808
- Part Number: 45-647-224
- Product Weight: 15.2 lbs
- Shipping Weight: 18.4 lbs
- Shipping Dimensions: 12.1" x 19.3" x 7" (30.8 x 48.6 x 17.8 cm)

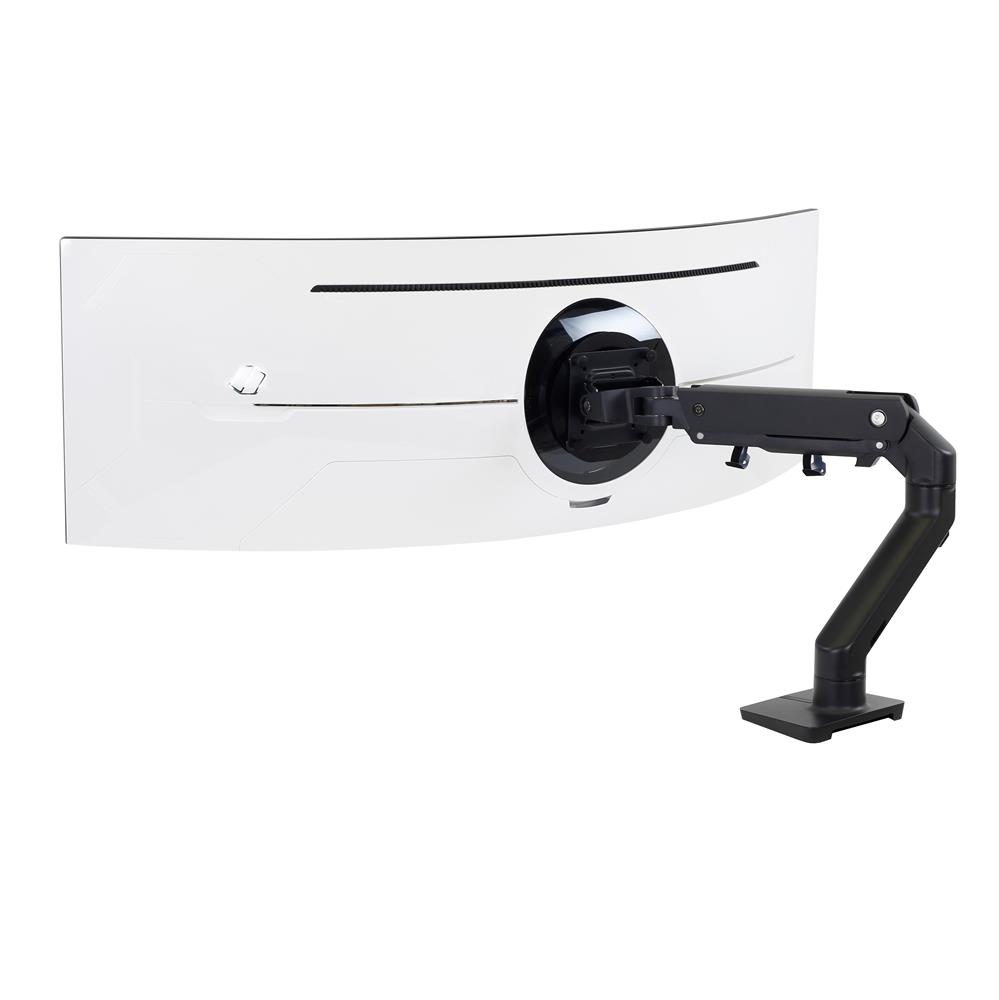

- Description: HX Desk Monitor Arm with HD Pivot

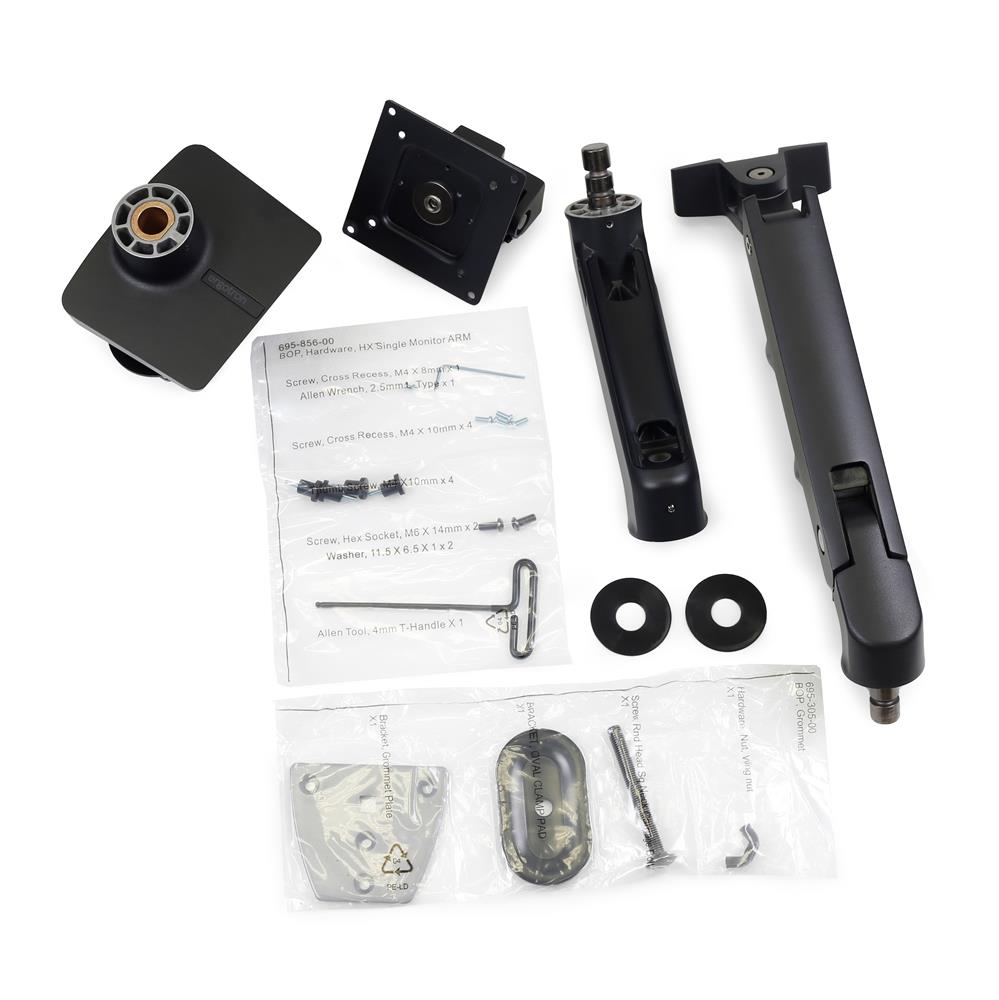

- Includes arm, extension, HD pivot, desk clamp, grommet mount, mounting hardware
- The Samsung Odyssey G9 may require a proprietary VESA adapter bracket to attach to the HX arm’s VESA Standard interface. This proprietary bracket should be included in the box with the Samsung Odyssey G9
- Some variations of the Samsung Odyssey G9 are compatible with the standard HX Arm. Be sure to check your display’s weight and its depth to ascertain which mount is appropriate for your display

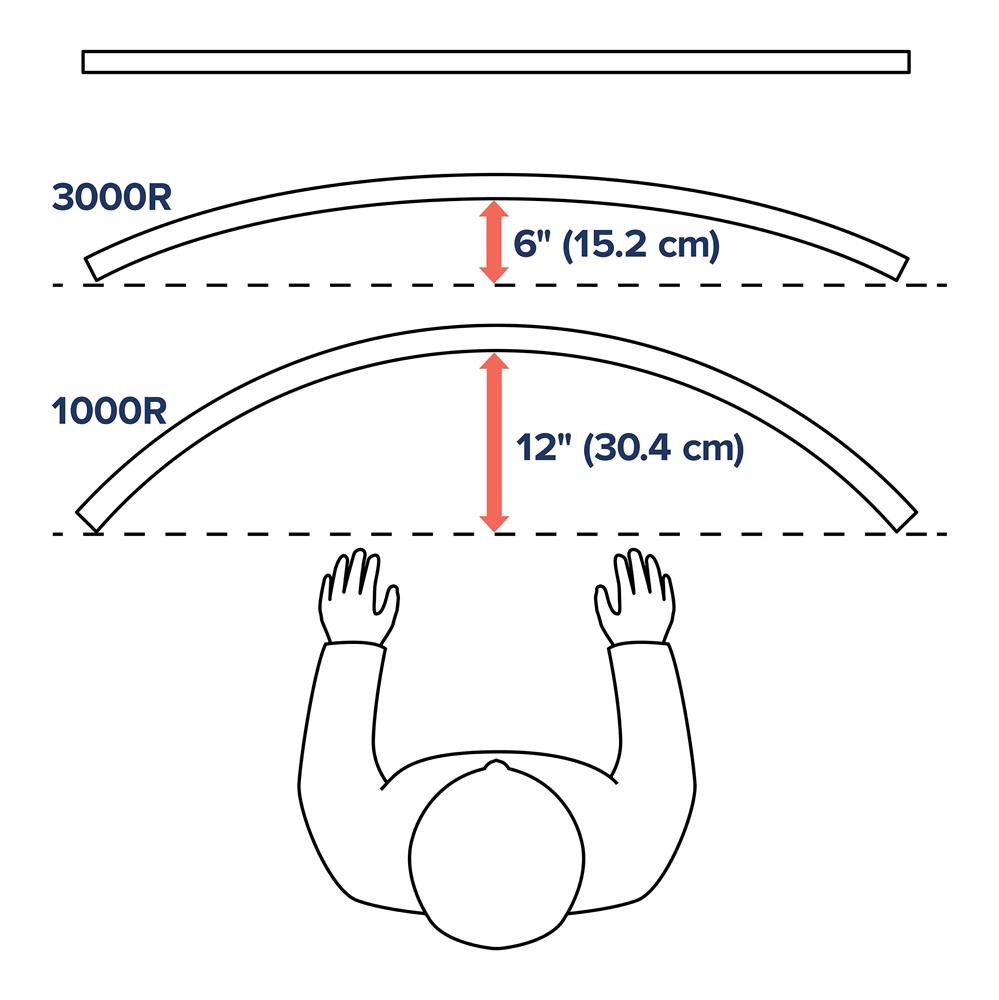

- § Suitable for monitors weighing 28–42 lbs (12.7–19.1 kg) with a depth of 6"–12" (15–30 cm) without stand. For monitors with a depth less than 8" (20 cm), also consider using the standard HX desk arm
- Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
- Portrait/landscape rotation with lockout
- Streamlined cable management routes cables under arm and within extension
- Desk clamp attaches to surface edge 0.4" to 2.6" (1.0 to 6.6 cm) thick
- Grommet mount attaches through surface holes
- * Monitor can be turned 360° at connection point of arm and extension; turning is restricted to 180° at connection point of extension and base
- † Tilt Range: 15° backward, 5° forward
- Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm)
- Monitor shown is the Samsung Odyssey G9. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
- Warranty: Ten years
- GTIN: 00698833085808
- Part Number: 45-647-224
- Product Weight: 15.2 lbs
- Shipping Weight: 18.4 lbs
- Shipping Dimensions: 12.1" x 19.3" x 7" (30.8 x 48.6 x 17.8 cm)
- Description: HX Desk Monitor Arm with HD Pivot
- Includes arm, extension, HD pivot, desk clamp, grommet mount, mounting hardware
- The Samsung Odyssey G9 may require a proprietary VESA adapter bracket to attach to the HX arm’s VESA Standard interface. This proprietary bracket should be included in the box with the Samsung Odyssey G9
- Some variations of the Samsung Odyssey G9 are compatible with the standard HX Arm. Be sure to check your display’s weight and its depth to ascertain which mount is appropriate for your display
- § Suitable for monitors weighing 28–42 lbs (12.7–19.1 kg) with a depth of 6"–12" (15–30 cm) without stand. For monitors with a depth less than 8" (20 cm), also consider using the standard HX desk arm
- Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas
- Portrait/landscape rotation with lockout
- Streamlined cable management routes cables under arm and within extension
- Desk clamp attaches to surface edge 0.4" to 2.6" (1.0 to 6.6 cm) thick
- Grommet mount attaches through surface holes
- * Monitor can be turned 360° at connection point of arm and extension; turning is restricted to 180° at connection point of extension and base
- † Tilt Range: 15° backward, 5° forward
- Mounting Standards: VESA MIS-D, 75/100 (hole pattern = 100 x 100 mm & 75 x 75 mm)
- Monitor shown is the Samsung Odyssey G9. Samsung is a registered trademark of Samsung Electronics Co., Ltd.
- Warranty: Ten years
Screen：

≤49 inch

Capacity：

28–42 lbs / 12.7–19.1 kg

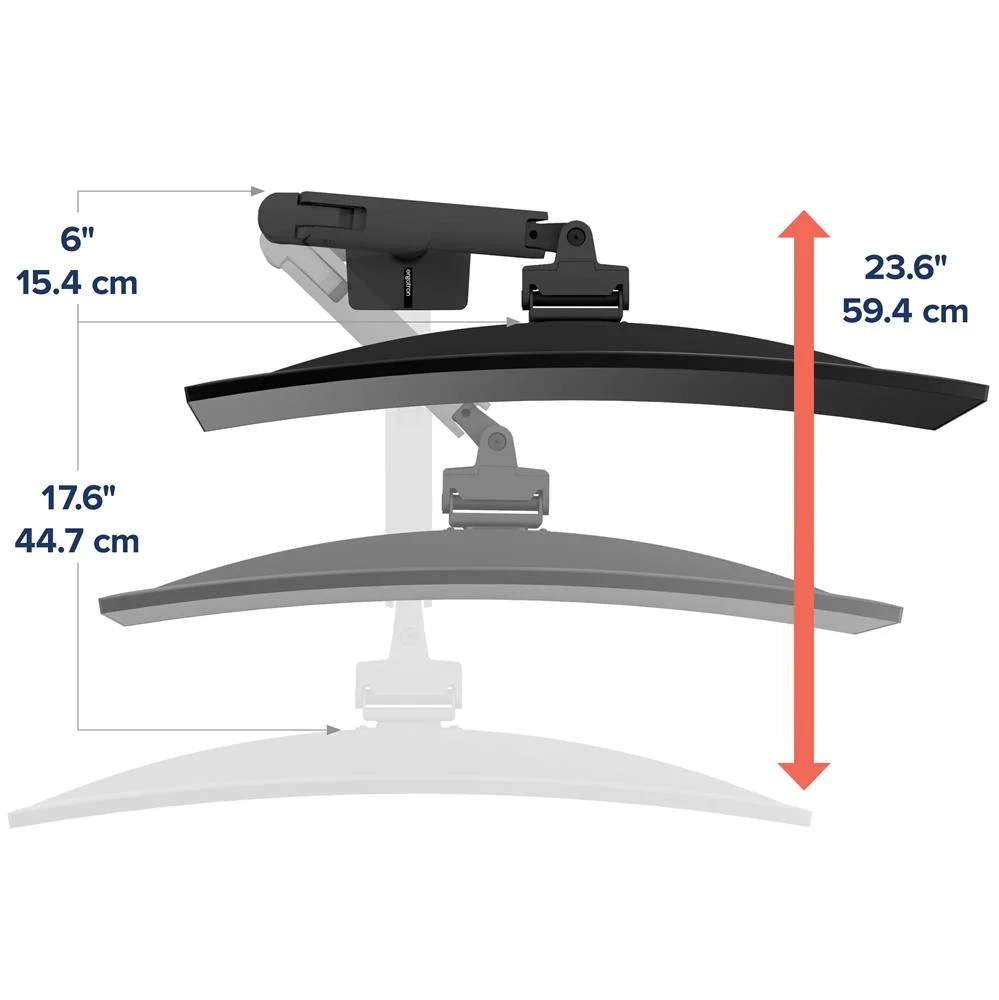

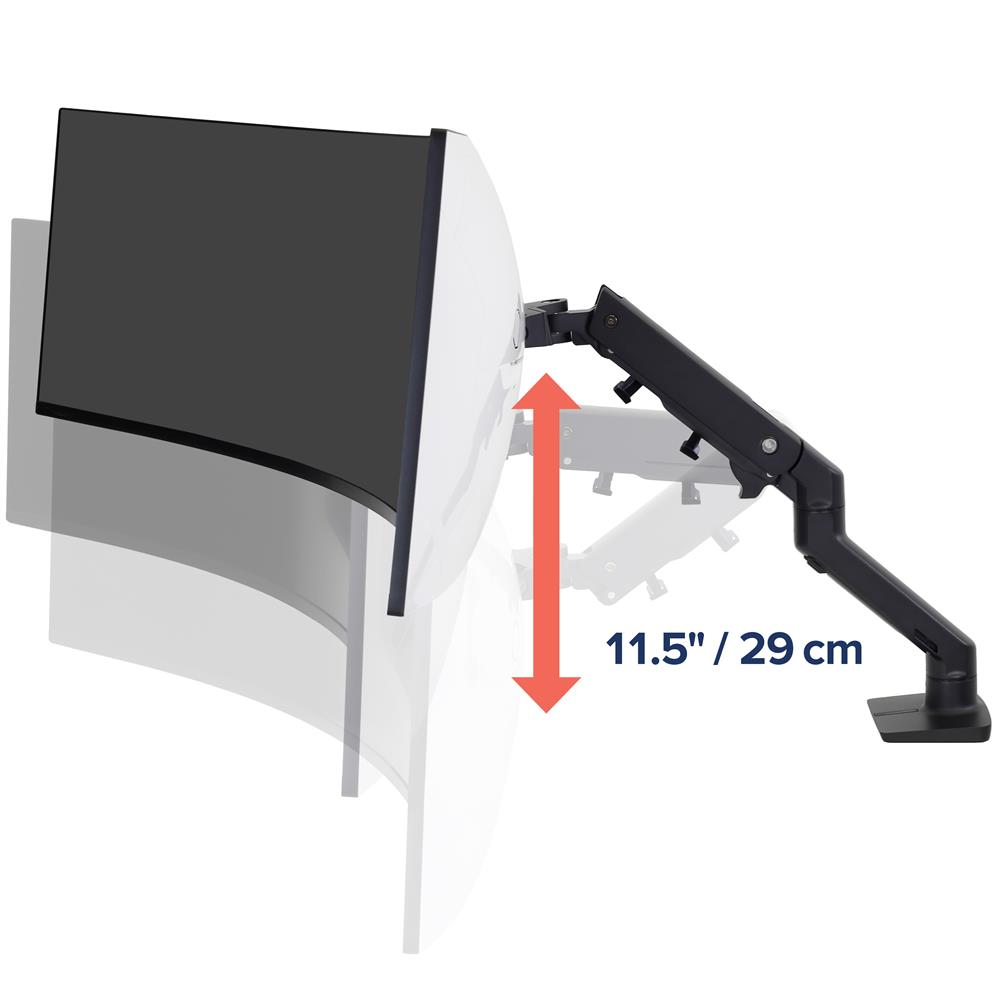

Lift：

11.5inch(29.2 cm)

Tilt：

20° †

Pan：

180°

Rotation：

360°

Vesa：

MIS-D

Warranty：

10 years
