Product Details
Product Parameters

- GTIN: 00698833012033
- Part Number: 45-245-026
- Product Weight: 14.0 lbs
- Shipping Weight: 17.4 lbs
- Shipping Dimensions: 19.25" x 17.75" x 6.25" (49 x 45 x 16 cm)

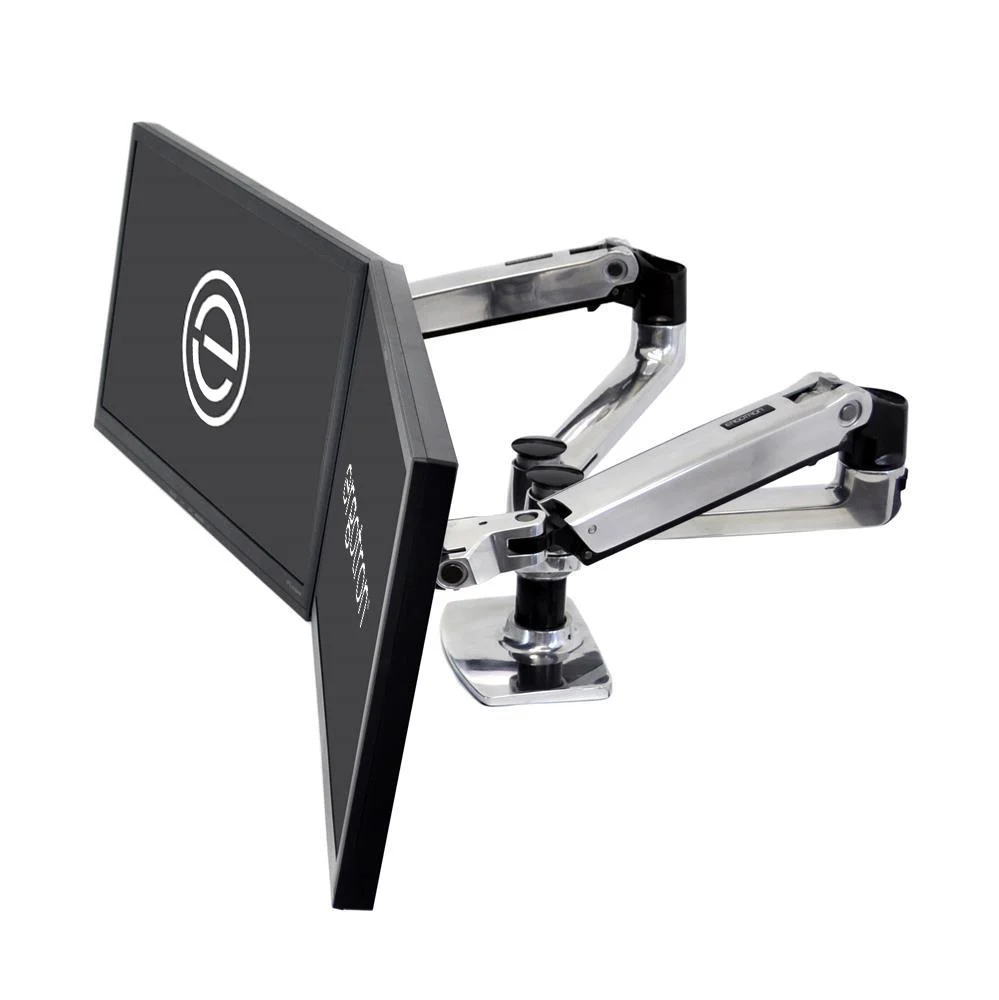

- Description: LX Dual Monitor Arm, Side-by-Side (polished aluminum)
- Includes two arms, two extensions, pole, t-bracket, base, desk clamp, grommet mount
- Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray accessory (50-193-200)
- Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
- Steel and aluminum construction offers greater durability and enhanced aesthetics
- † Larger displays (e.g. 23" to 27" screen sizes) cannot be positioned in a stacked orientation; larger displays can only be placed side by side
- * Weight Capacity: Individual monitor weight = 7–20 lbs (3.2–9.1 kg). Monitor depth greater than 3.5" (8.9 cm) may diminish capacity
- Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
- Desk clamp attaches to edge up to 2.6" (66 mm) thick
- Grommet mount attaches through hole 5/16" to 2" (8–50 mm) wide and up to 3" (76 mm) thick. Note: A grommet mount is not included with the white model of the arm, 45-491-216
- This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
- Warranty: Ten years
- GTIN: 00698833012033
- Part Number: 45-245-026
- Product Weight: 14.0 lbs
- Shipping Weight: 17.4 lbs
- Shipping Dimensions: 19.25" x 17.75" x 6.25" (49 x 45 x 16 cm)
- Description: LX Dual Monitor Arm, Side-by-Side (polished aluminum)
- Includes two arms, two extensions, pole, t-bracket, base, desk clamp, grommet mount
- Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray accessory (50-193-200)
- Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
- Steel and aluminum construction offers greater durability and enhanced aesthetics
- † Larger displays (e.g. 23" to 27" screen sizes) cannot be positioned in a stacked orientation; larger displays can only be placed side by side
- * Weight Capacity: Individual monitor weight = 7–20 lbs (3.2–9.1 kg). Monitor depth greater than 3.5" (8.9 cm) may diminish capacity
- Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
- Desk clamp attaches to edge up to 2.6" (66 mm) thick
- Grommet mount attaches through hole 5/16" to 2" (8–50 mm) wide and up to 3" (76 mm) thick. Note: A grommet mount is not included with the white model of the arm, 45-491-216
- This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
- Warranty: Ten years
Screen：

≤34 inch

Capacity：

7–25 lbs / 3.2–11.3 kg

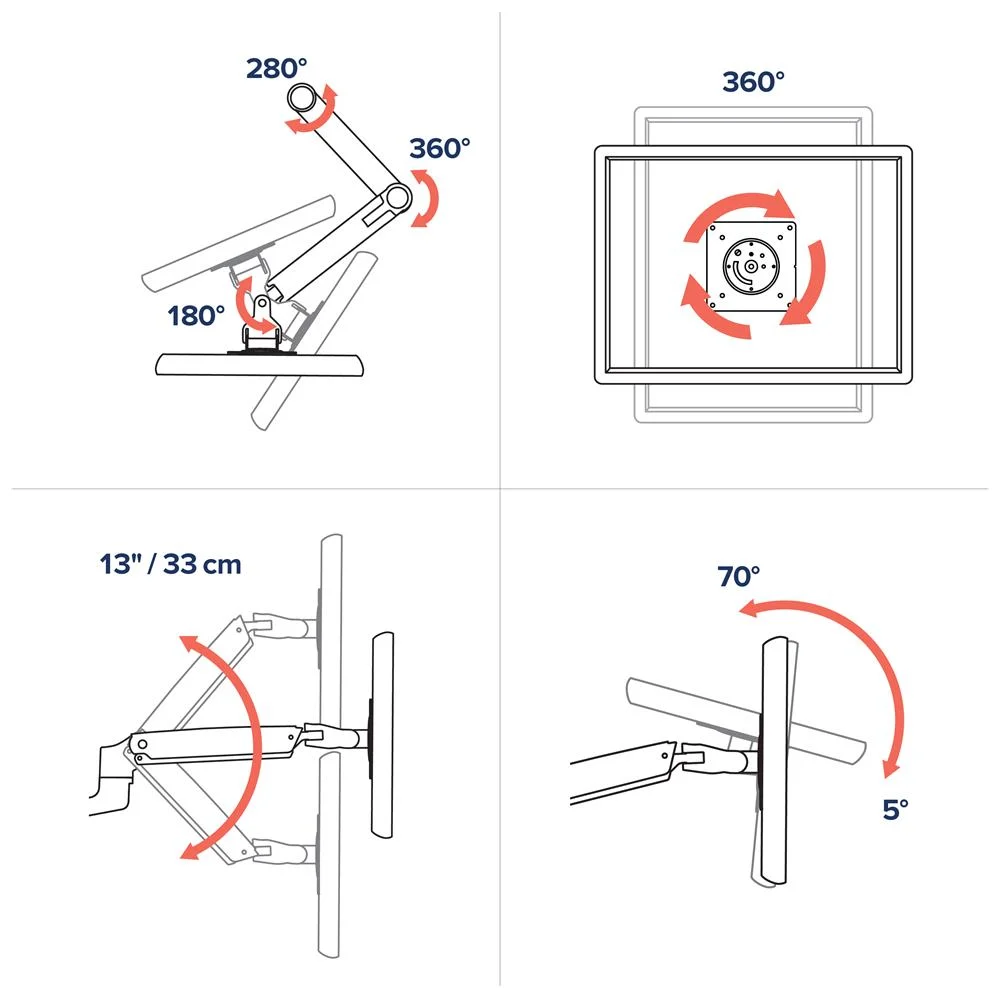

Lift：

13inch(33.0 cm)

Tilt：

75° †

Pan：

360°

Rotation：

360°

Vesa：

MIS-D

Warranty：

10 years
