Product Details
Product Parameters

- GTIN: 00698833075656
- Part Number: 45-243-224
- Product Weight: 5.6 lbs
- Shipping Weight: 6.9 lbs
- Shipping Dimensions: 17.6" x 7.5" x 5.7" (45 x 19 x 14 cm)

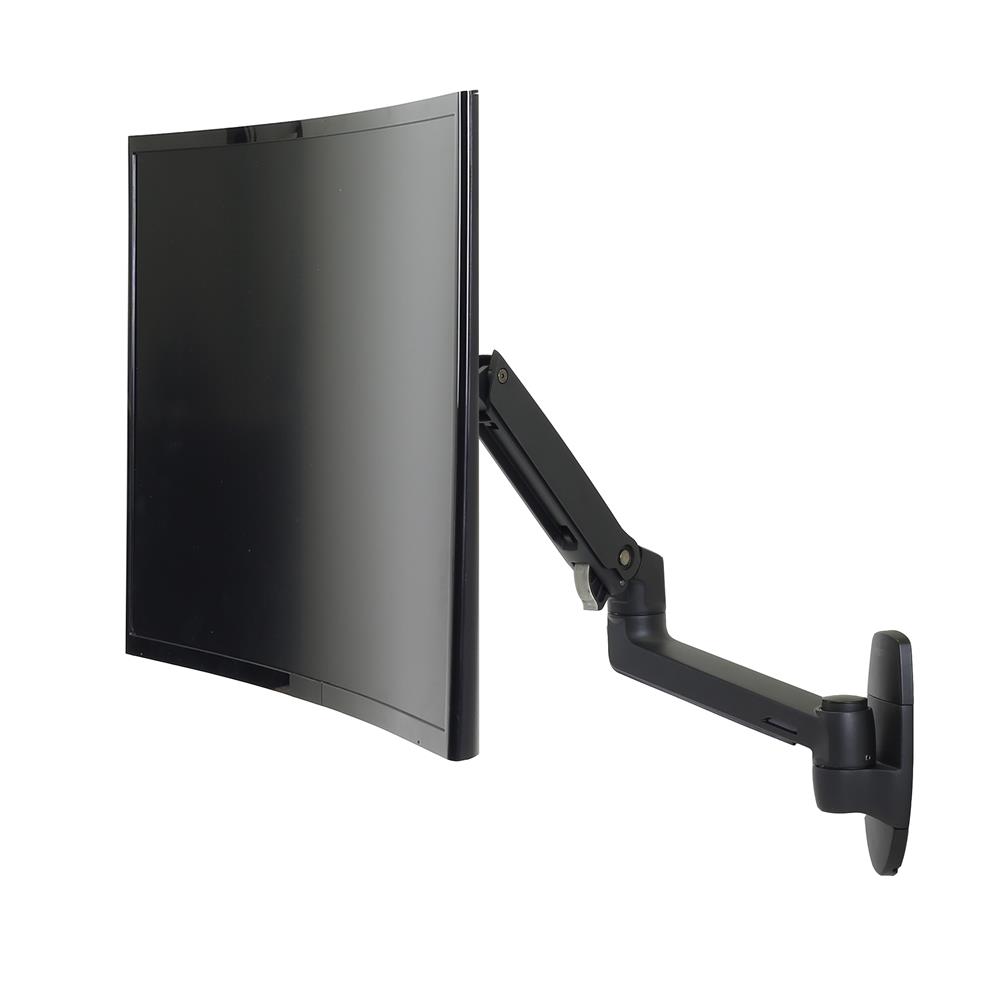

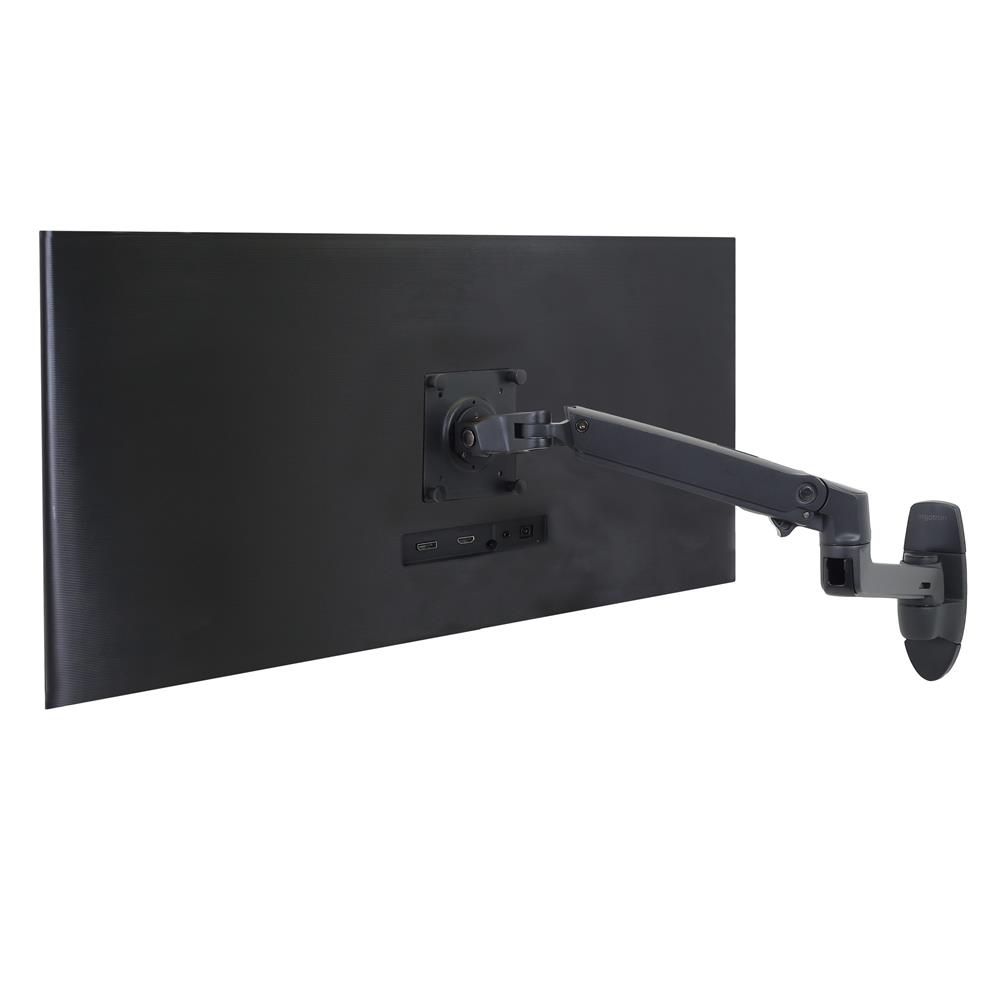

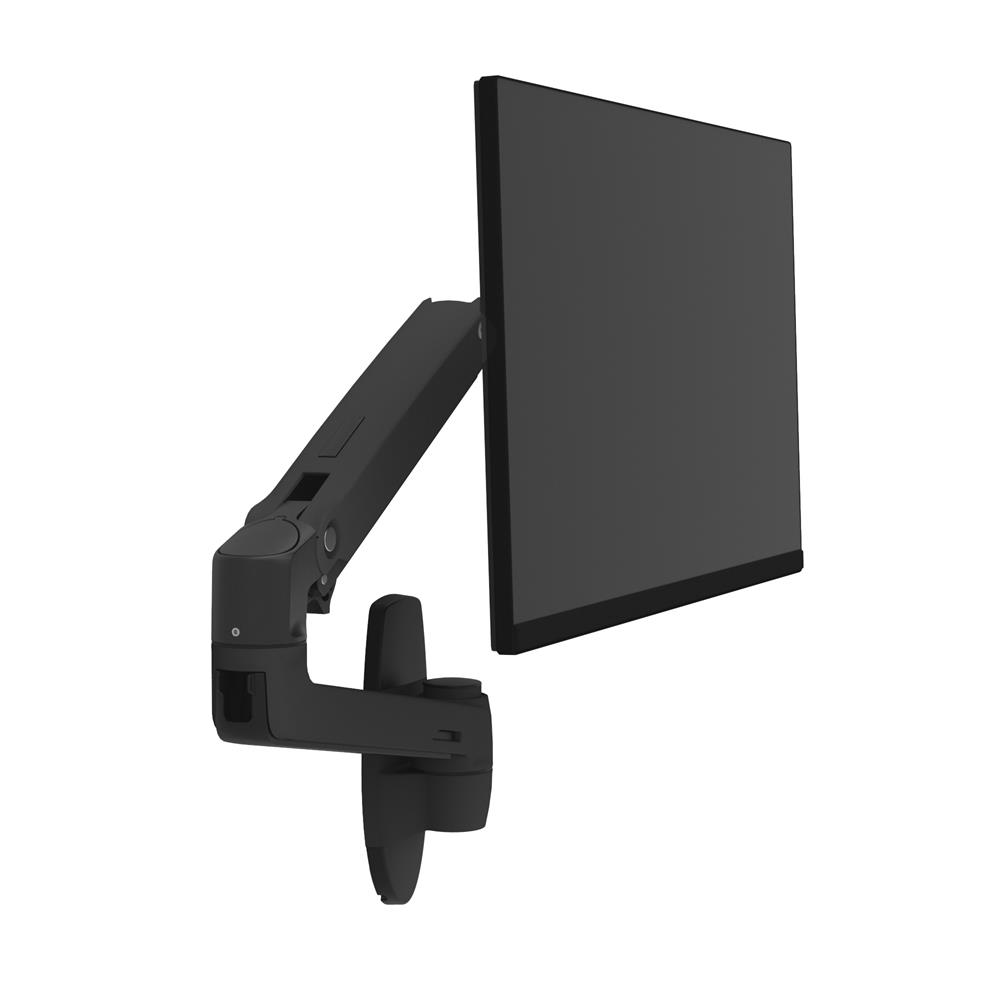

- Description: LX Wall Mount LCD Monitor Arm

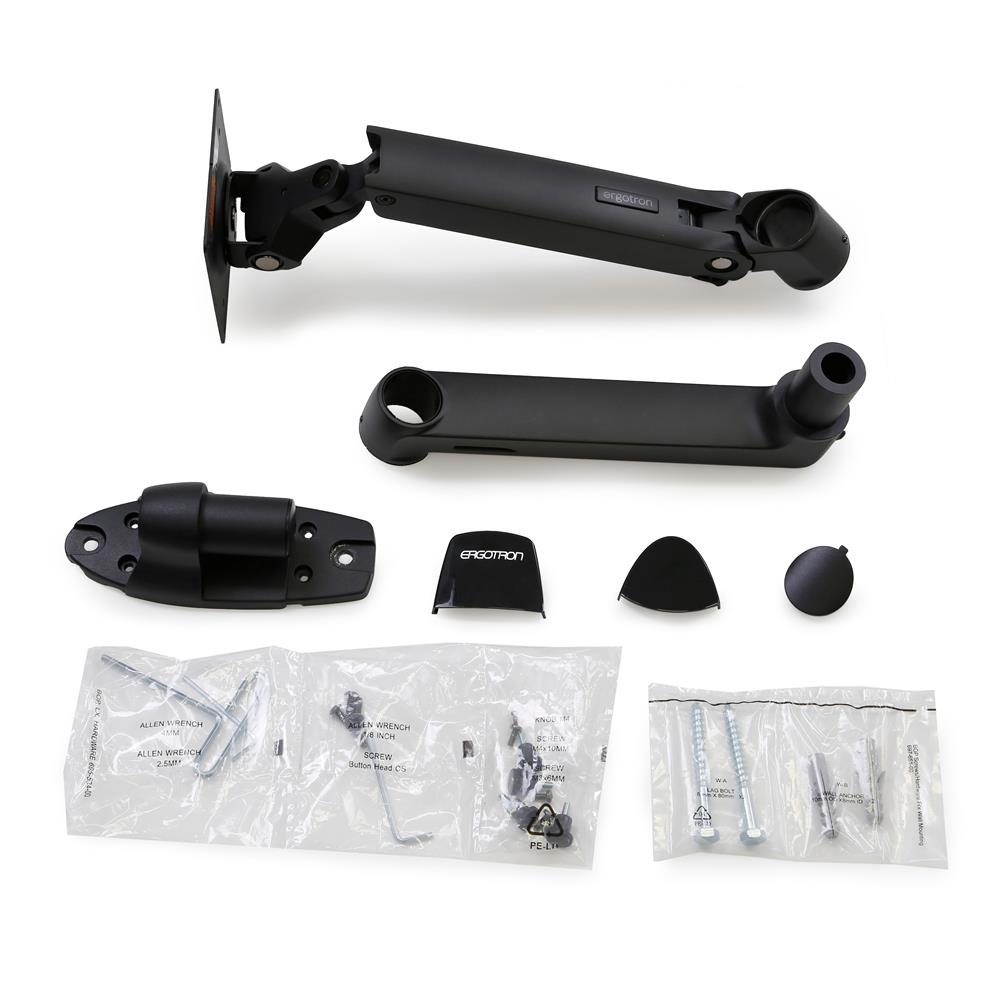

- Includes arm, extension, wall mount base, fasteners for wood stud or concrete wall, attachment hardware
- Fasteners for direct attachment to metal studs are not included. When attaching to wall supported with steel studs, the Steel Stud Wall Mounting Kit (60-591-003) is recommended
- Attaches directly to sturdy vertical surfaces. When extra support is needed, order a Wall Plate or Wall Track accessory (Wall Track also requires separately ordered bracket 97-091)
- Can be configured to hold a laptop instead of an LCD display; also order a Notebook Tray (50-193-200)
- * Weight Capacity: 7 to 25 lbs (3.2 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm). Monitor depth greater than 3.5" (8.9 cm) may diminish capacity
- † Monitor tilts 70° up and 5° down
- Aluminum construction offers greater durability and enhanced aesthetics
- Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
- Base includes theft deterrent anchor holes for cable locks
- This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
- Warranty: Ten years
- GTIN: 00698833075656
- Part Number: 45-243-224
- Product Weight: 5.6 lbs
- Shipping Weight: 6.9 lbs
- Shipping Dimensions: 17.6" x 7.5" x 5.7" (45 x 19 x 14 cm)
- Description: LX Wall Mount LCD Monitor Arm
- Includes arm, extension, wall mount base, fasteners for wood stud or concrete wall, attachment hardware
- Fasteners for direct attachment to metal studs are not included. When attaching to wall supported with steel studs, the Steel Stud Wall Mounting Kit (60-591-003) is recommended
- Attaches directly to sturdy vertical surfaces. When extra support is needed, order a Wall Plate or Wall Track accessory (Wall Track also requires separately ordered bracket 97-091)
- Can be configured to hold a laptop instead of an LCD display; also order a Notebook Tray (50-193-200)
- * Weight Capacity: 7 to 25 lbs (3.2 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm). Monitor depth greater than 3.5" (8.9 cm) may diminish capacity
- † Monitor tilts 70° up and 5° down
- Aluminum construction offers greater durability and enhanced aesthetics
- Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
- Base includes theft deterrent anchor holes for cable locks
- This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)
- Warranty: Ten years

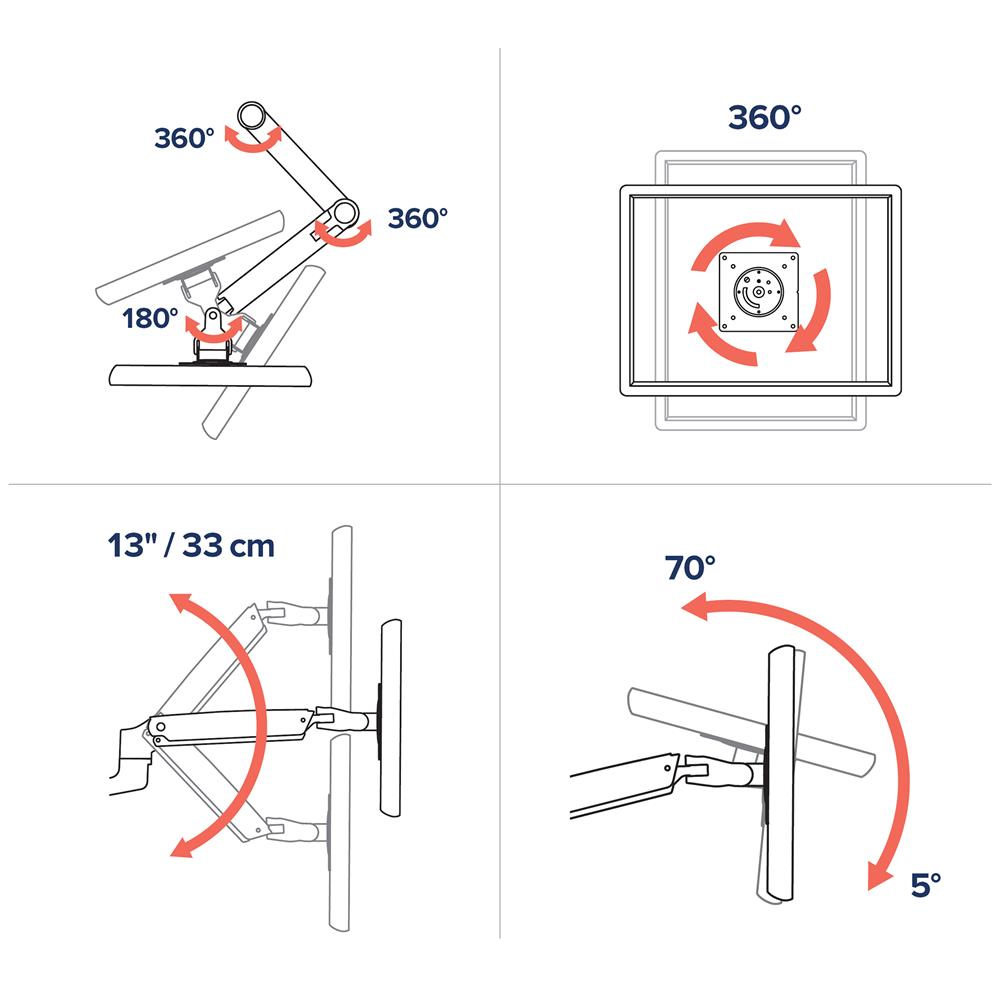

Screen：

≤34 inch

Capacity：

7–25 lbs / 3.2–11.3 kg

Lift：

13inch(33.0 cm)

Tilt：

75° †

Pan：

360°

Rotation：

360°

Vesa：

MIS-D

Warranty：

10 years
