GTIN: 00698833073829

Part Number: 45-241-224

Product Weight: 7.9 lbs

Shipping Weight: 10.3 lbs

Shipping Dimensions: 22.6" x 9.1" x 5.9" (57 x 23 x 15 cm)

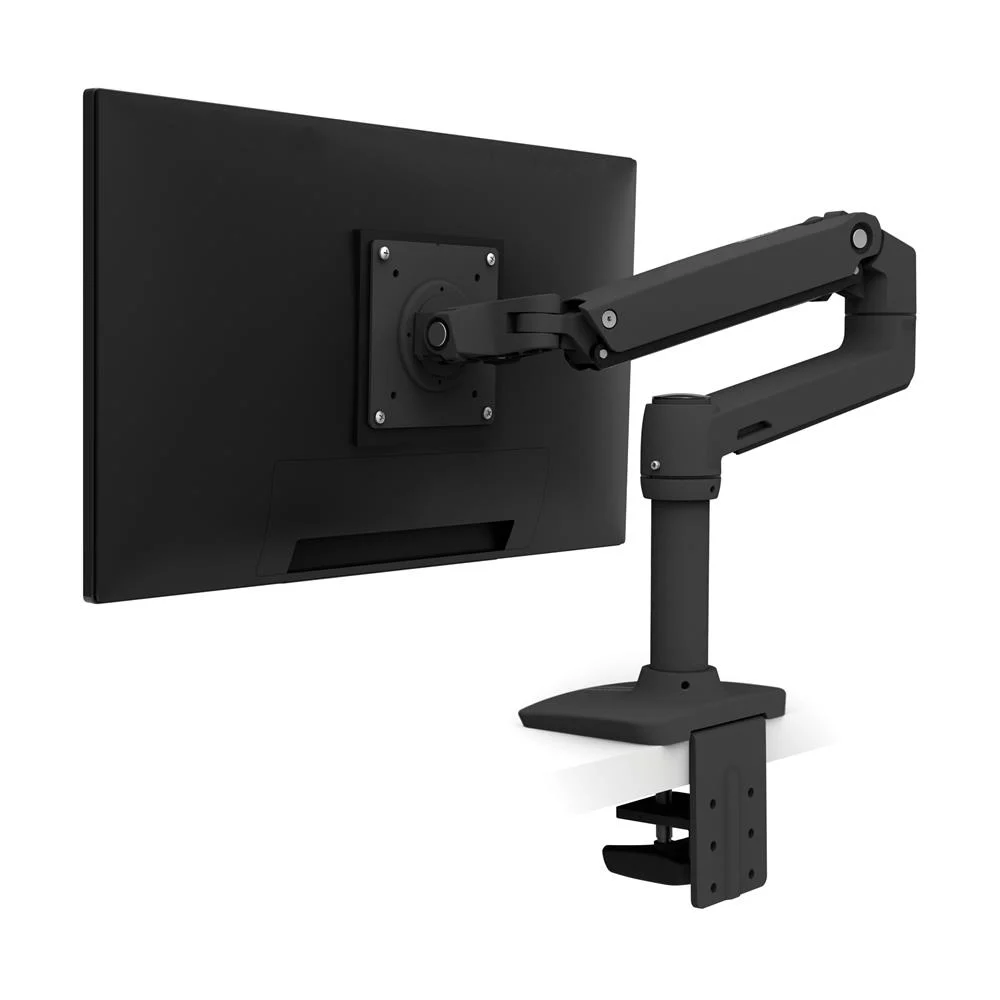

Description: LX Desk Mount LCD Monitor Arm

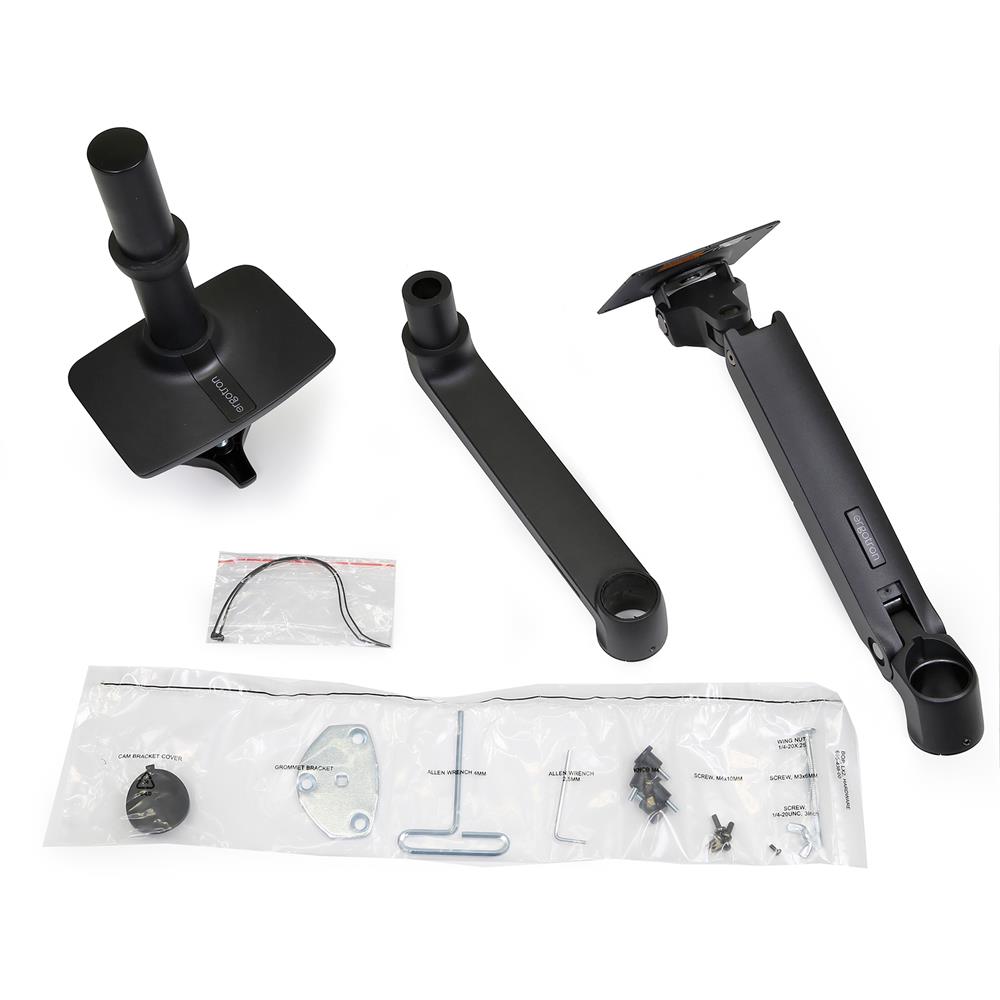

Includes arm, extension, base, 2-piece clamp, grommet mount, 8" pole, attachment hardware

Can be configured to hold a laptop instead of an LCD display; also order the accessory Notebook Tray (50-193-200)

Quality Tested: 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment

Aluminum construction offers greater durability and enhanced aesthetics

Arm folds back over the base into a compact retracted position; perfect for tucking under systems furniture storage shelves or cabinets in space constrained areas

Cable management feature routes cables under the arm

Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

* Weight Capacity: 7 to 25 lbs (3.2 to 11.3 kg). With monitors greater than 20 lbs (9.1 kg) in weight, the vertical range of motion may be reduced up to 4.5" (11 cm) for a total height range of 8.5" (22 cm). Monitor depth greater than 3.5" (8.9 cm) may diminish capacity

Note: If installed on WF-T or WF-TL, maximum allowable monitor weight is reduced to 14 lbs (6.4 kg). A separately ordered Grommet Mount (98-017) is required for attachment

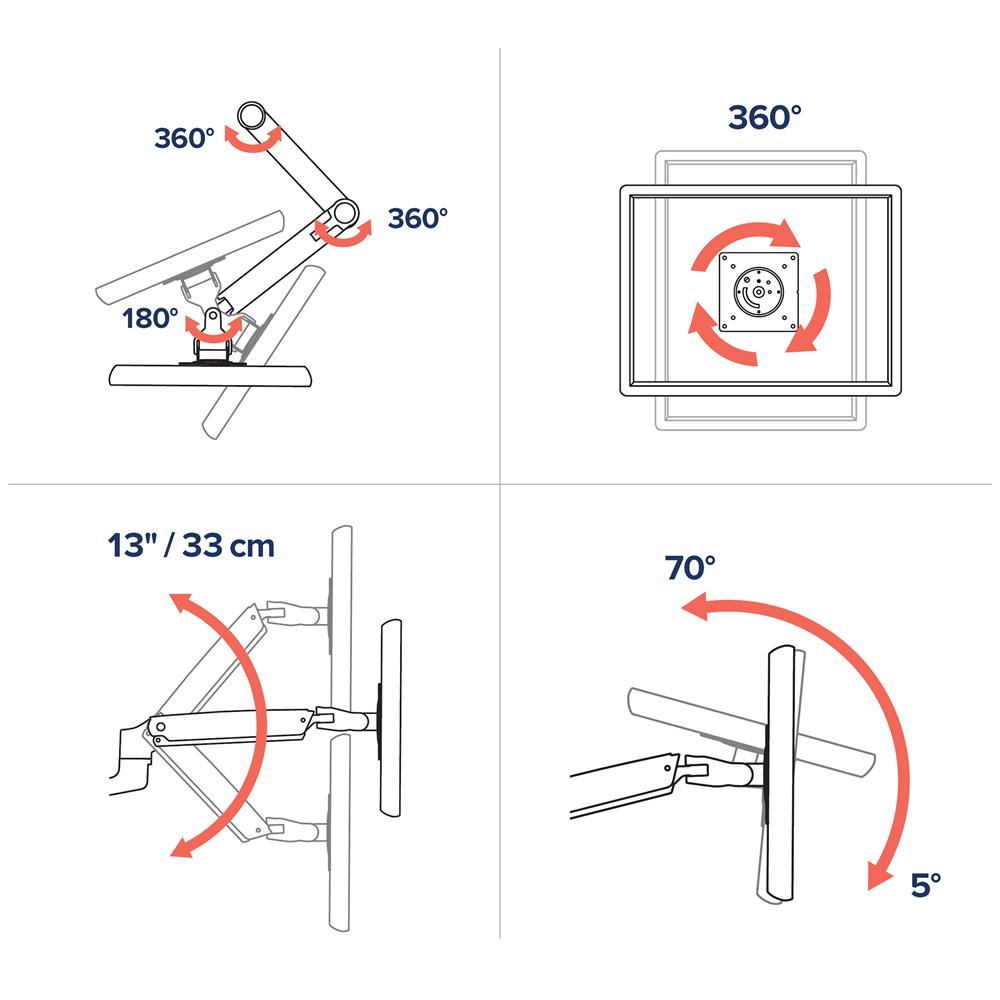

† Tilt Range: 70° backward, 5° forward

This product is certified in compliance with indoor air quality standards defined by ANSI/BIFMA pertaining to emissions of VOC (volatile organic compounds)

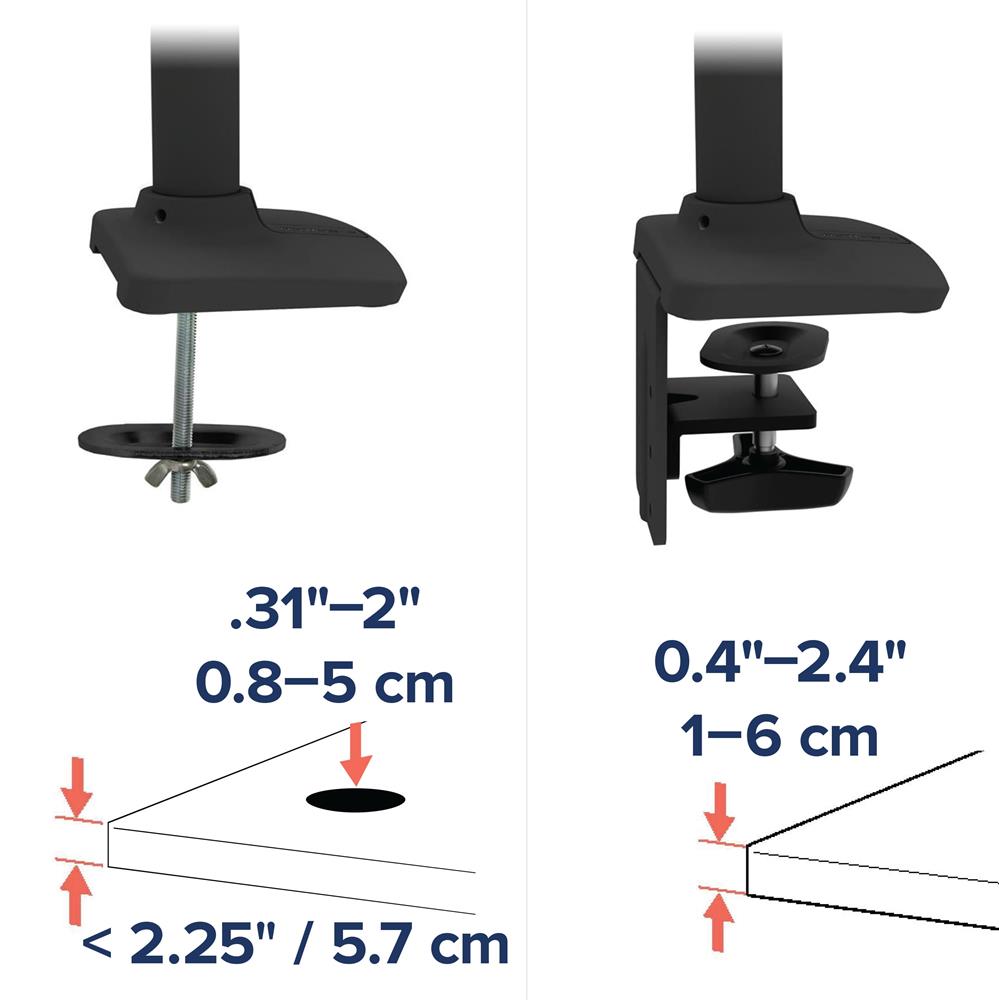

Desk Clamp attaches to surface edge 0.4" to 2.4" (10 to 60 mm) thick

Grommet Mount attaches through surface hole 0.31" to 2" (8 to 50 mm) wide and up to 2.25" (57 mm) thick. (Grommet Mount not included with white model of arm, 45-490-216)

Note: This arm cannot be retrofitted with a Low-Profile Clamp

Warranty: Ten years
